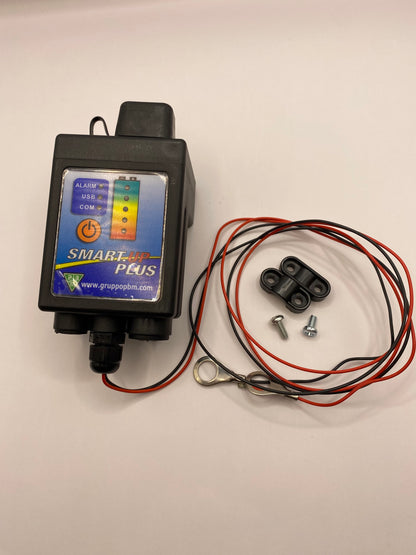

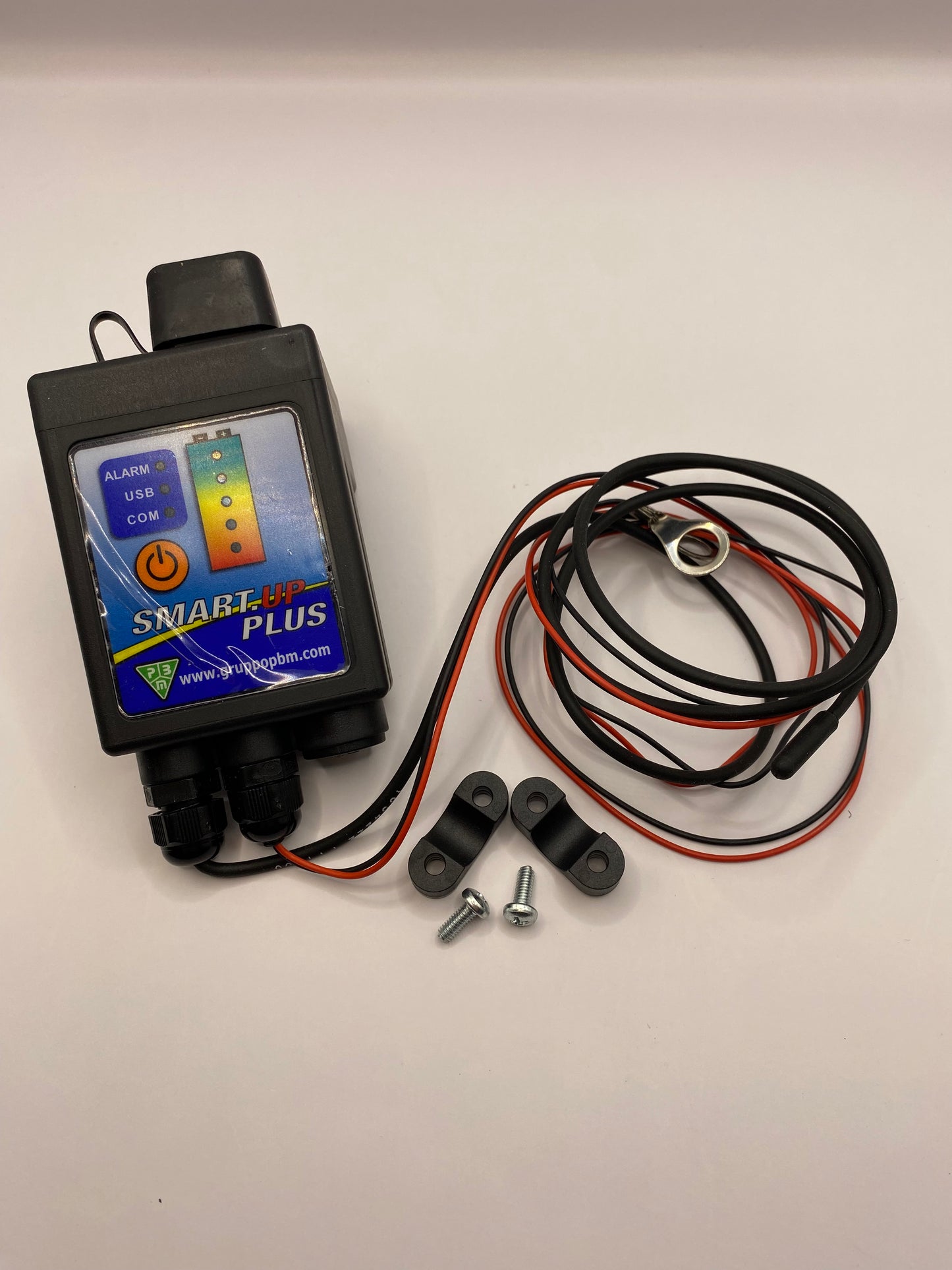

Smart-Up Battery Data Monitor
Smart-Up Battery Data Monitor
Smart-UP is a device designed for the monitoring and control of lead batteries
- Measurement of the instantaneous battery data including voltage, current, available Ah and temperature. An indication of the amount of Ah available is provided by LEDs on the panel
- Built-in RTC (Real Time Clock) to build a log of the data collected with date and time
- Storage of historical data. The history of the battery can be viewed on a PC using the SmartView II software application. The data collected can be viewed grouped by working cycle or by day. For each working cycle the data is presented both in figures and graphics.
- Data download to a PC: Through a USB connection, all data can be sent to the SmartView II PC program.
- Data download to a USB memory dongle: inserting a USB memory dongle into the Smart-UP USB port, it is possible to upload all of the stored data. Afterwards, connecting the dongle to a PC, it is possible to import all of the fleet data using the SmartView II.
Technical data:
Stored working cycles |
400 |
Current and voltage graphic data |
11400 samples (47 days setting Sampling Time = 6min) |
Stored daily data |
Last 30 days |
WORKING RANGE:
Current size: T200 |
Suitable for batteries from 100Ah to 340Ah |
Current size: T400 |
Suitable for batteries from 350Ah to 740Ah |
Current size: T800 |
Suitable for batteries from 750Ah to 1500Ah |
ELECTRICAL DATA:
Power supply min ¸ max |
18V ¸ 144V |
Average absorbed power |
< 1.5W |
Internal protection |
Fuse at the supply port |
Working temperature |
-20°C ¸ +50°C |
Physical data:
Mechanical size |
2.36" x 2.36 x 5.12" |
Weight |
1 lb. |
Protection grade |
IP 54 |
