Automatic Transfer Carriages (ATC)

Automatic Transfer Carriages (ATC)

Part #:

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

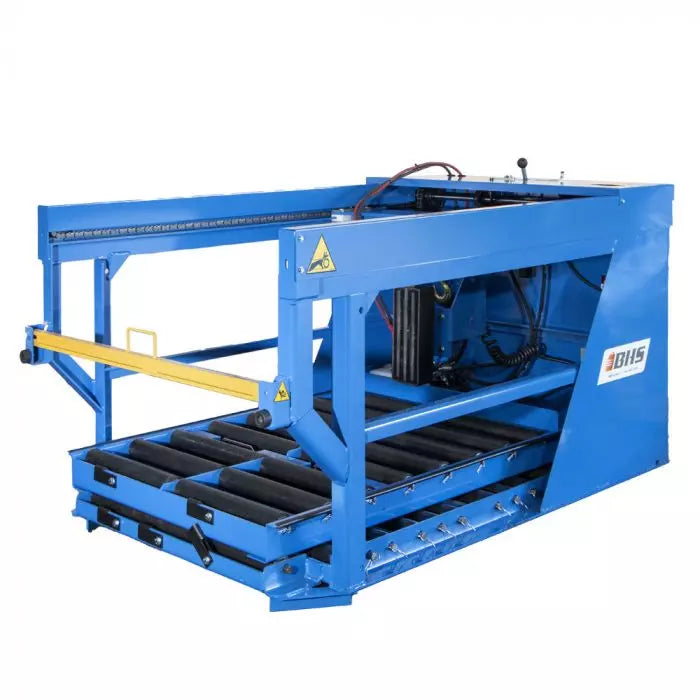

The Automatic Transfer Carriage (ATC) is a powered forklift battery transfer cart designed to be mounted on an existing pallet truck. The ATC is available in a variety of models with many flexible options to satisfy all unique battery handling requirements. Simply mount the ATC onto a spare pallet truck and connect the battery (12 volt and 24 volt DC power available). The ATC’s extractor arm is operated entirely by the pallet truck battery, removing the need for an auxiliary power source. Position the ATC against the forklift battery compartment; rubber bumpers allow close contact without damaging the lift truck’s finish. Operators use easy-access, center-mounted controls to extend the extraction arm. Once it connects to the forklift battery (via magnetic, vacuum, or hook-and-chain attachment), the hydraulic-powered extraction arm gently pulls the battery over the ATC’s 10 compartment rollers. A steel battery containment bar keeps the battery in place during transit.
