PDG-120-120 Powered Dock Gate

Powered Dock Gate

Prevent dock accidents with a powered, high-visibility barrier. When the dock is in use, lift the gate with the push of a button. The  PDG improves safety for forklift operators and pedestrians alike, while also guarding dock edges against impact damage.

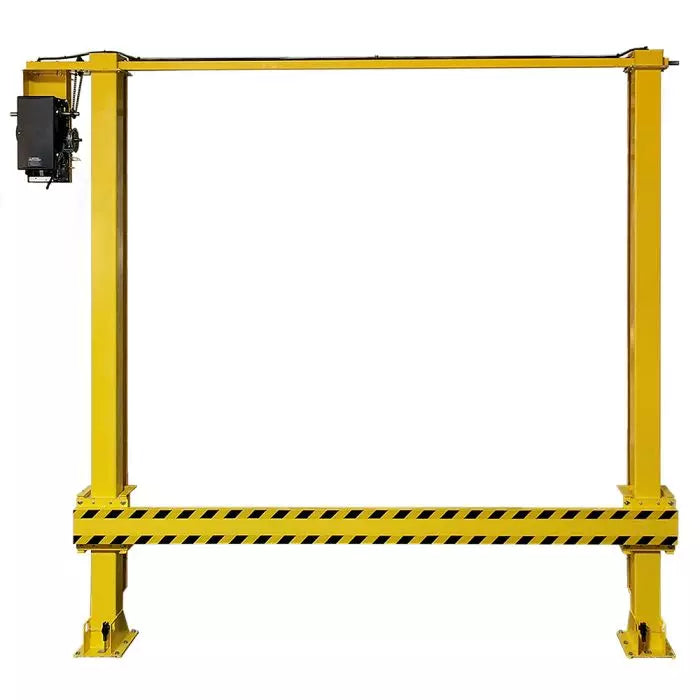

These dock safety gates feature two steel uprights supporting a horizontal barrier with a reinforced structural channel. A high-visibility yellow finish instantly alerts staff to the danger of a vacant loading dock, while the security gate bar prevents roll-off even if forklift operators miss the visual warning. This barrier is capable of stopping 10,000 pounds of force at 4 miles per hour, stopping reversing forklifts before accidents occur.

Raising and lowering the security gate is simple and ergonomically friendly, thanks to an electric motor and a push-button control. (Manually operated models are also available.) These loading dock gate controls allow staff to quickly open a dock for business, or seal it to traffic between uses, all without physical exertion beyond a button press.

Features & Benefits

• Prevents roll-off at docks
• Protects dock edges from lift truck strikes
• High-visibility yellow finish alerts viewers to open-dock hazards
• Reinforced steel barrier is capable of stopping impacts of 10,000 lb at 4 mph
• Uprights bolt securely to dock floor for simple installation
• Three-button control simplifies operation
• Electric motor automates lifting and lowering of safety barrier
• Powered unit rated for 15 cycles per hour
• Motor compatible with 115V and 230V circuits
• Manually operated models available
• Custom models available on request
• Proudly designed and manufactured in the USA

Specifications
