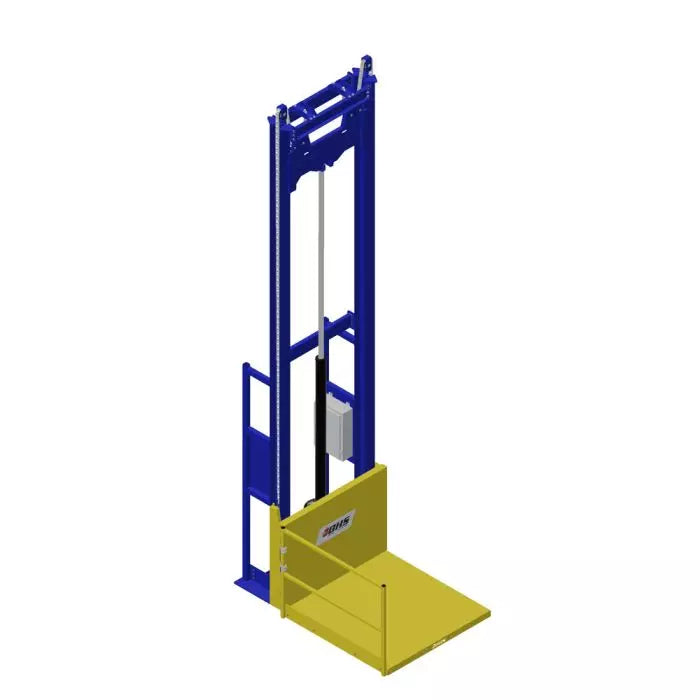

VRC - Hydraulic Cantilever Vertical Reciprocating Conveyor

The Hydraulic Cantilever Vertical Reciprocating Conveyor (VRC-HC) is a quick-to-deploy lifting solution that is ready to start elevating heavy loads virtually right off the truck. These units ship assembled for faster installation, allowing you to secure the base, connect the power, and put the system into operation with minimal delay.

These vertical lifts are ideal for moving pallet loads, loose materials, and heavy equipment between levels. They offer a cost-effective alternative to freight elevators and can begin delivering a return on investment much faster than many competing solutions.

Hydraulic Cantilever VRCs are sized for mezzanines and other multi-level applications, delivering up to 15 feet of vertical travel. They are available in 3,000 lb. and 6,000 lb. lifting capacities, with carriage platform options sized for common materials including pallets, carts, and AGVs.

Designed for space efficiency, the two-post cantilever design helps minimize the overall footprint. Travel speeds of up to 21 feet per minute support high-throughput operations, while robust safety features help ensure safe and dependable operation. A range of optional features is available, and fully custom models can be built on request.

Key features:

• Cost-effective alternative to freight elevators — provides vertical lifting at a lower overall cost
• Ships assembled — supports faster installation and deployment
• Compact footprint — saves valuable floor space
• Up to 15 feet of vertical travel — ideal for mezzanines and multi-level applications
• Two-post cantilever design — engineered for efficient use of space
• Supports common loading patterns — including 3-way access
• Available in 3,000 lb. or 6,000 lb. capacities — accommodates a range of lifting needs
• Multiple carriage platform sizes — available in 50" x 50", 60" x 60", or 60" x 90"
• Travel speed up to 21 ft/min — helps improve material handling efficiency
• Built-in safety features — includes interlocks, position sensors, and emergency drop locks
• Custom options available — configurable for your facility and application requirements
• Made in the USA — proudly designed and manufactured in the United States
