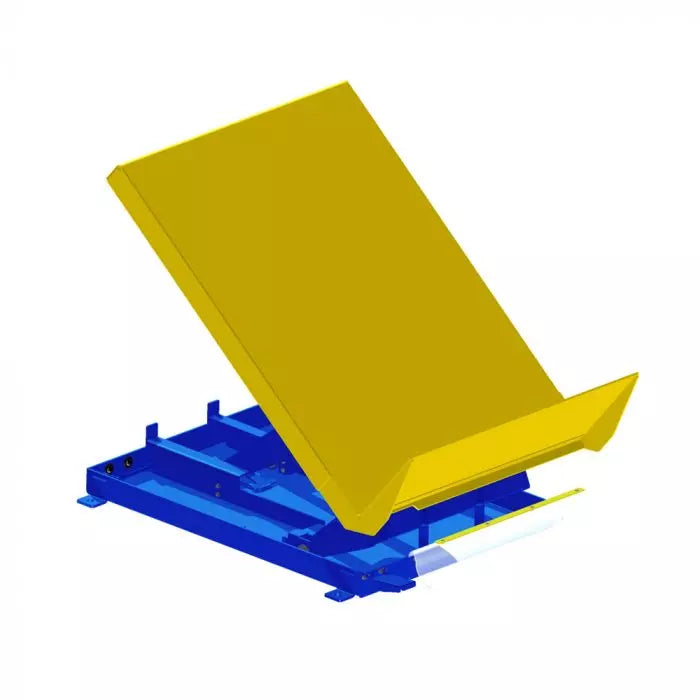

Ground -Level Tilt Table

Ground-Level Tilt Tables (GTT) help prevent physical strain and fatigue caused by lifting, bending, and reaching by tilting loads to a comfortable working position. By reducing repetitive motion and awkward handling, these tilting machines improve efficiency while helping reduce workplace injuries.

Ground-Level Tilt Tables are commonly used in warehouses and manufacturing facilities for applications such as order packing, product assembly, and machine feeding. With the proper platform size, they also function effectively as pallet tilters, allowing operators to access materials easily without excessive reaching or bending.

These tilt tables are available in two platform sizes—36" x 48" or 48" x 48"—and three load capacities of 2,000 lb., 4,000 lb., or 6,000 lb. All models raise loads from 8 inches to 40 inches and tilt up to 45 degrees, providing flexibility that allows workers to position materials comfortably and maintain efficient processing speeds.

The GTT design features three-sided loading access, a self-contained hydraulic power unit, and a convenient floor foot switch for simple operation. A compact footprint allows these units to fit easily into existing workflows, while heavy-duty steel construction and a durable powder-coated finish ensure long service life even in demanding warehouse environments.

Key features:

• Heavy-duty steel construction — formed steel design for durability and reliability
• Ground-level loading — simplifies loading and unloading while reducing strain
• Tilts up to 45° — improves ergonomic access to materials
• Lift range from 8" to 40" — supports comfortable working heights
• Multiple capacity options — available in 2,000 lb., 4,000 lb., or 6,000 lb. models
• Two platform sizes available — 36" x 48" and 48" x 48"
• Three-sided loading access — allows flexible positioning in work areas
• Self-contained hydraulic power unit — simplifies installation and operation
• NEMA floor toggle switch — easy-to-access up/down function control
• Maintenance chocks included — locks the unit securely during service
• Heavy-duty hydraulic components — braided hydraulic lines and hardened chrome piston rod for durability
• Built-in safety features — includes velocity fuses and thermal overload protection
• Powder-coated finish with yellow tilt top — improves durability, visibility, and safety
• Compact footprint — maximizes efficiency while conserving floor space
• Made in the USA — proudly designed and manufactured in the United States
