Eagle Eye Elite IV (In-Valve) - Electrolyte Level Sensors for Industrial and Deep Cycle batteries

Eagle Eye Elite IV (In-Valve) - Electrolyte Level Sensors for Industrial and Deep Cycle batteries

BENEFITS:

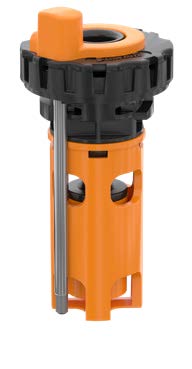

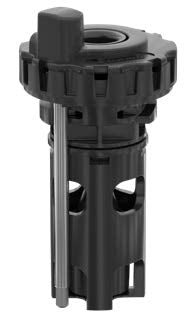

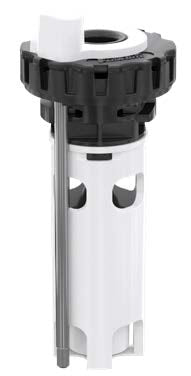

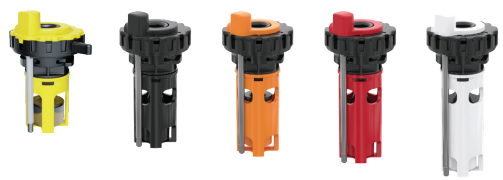

• Sensor is integrated into the valve
• Handle on control module makes it easy to strap onto the battery
• Sealed lens protects the LED and electronics from impacts and acid migration
• Ring terminals are epoxy-sealed to wires to prevent corrosion
• Low current draw: 2mA - 7mA
• Reverse polarity protected
• RoHS Compliant

Light can be mounted on the dash or the side of the battery case.

SPECIFICATIONS

• Operating temperature range: 0˚- 150˚ F
• Operating voltage: 12 VDC - 48 VDC
• Current draw: 2mA - 7mA
• Power consumption range: 115mW at 48 VDC
• Red power wire length: 36˝
• Black power wire length: 36˝
• Probe wire length: 24˝
• LED wire length: 36
